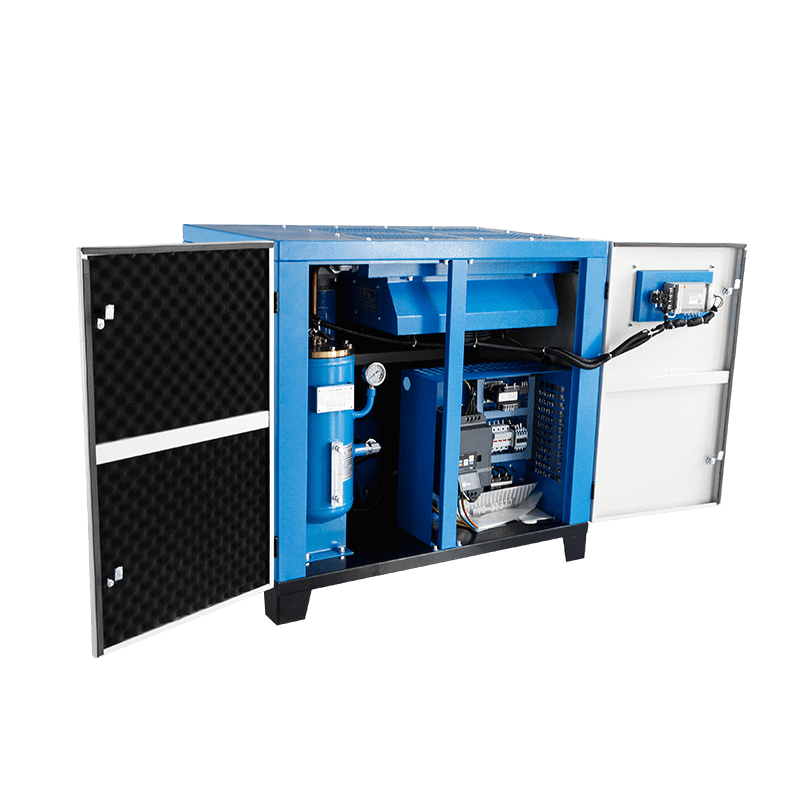

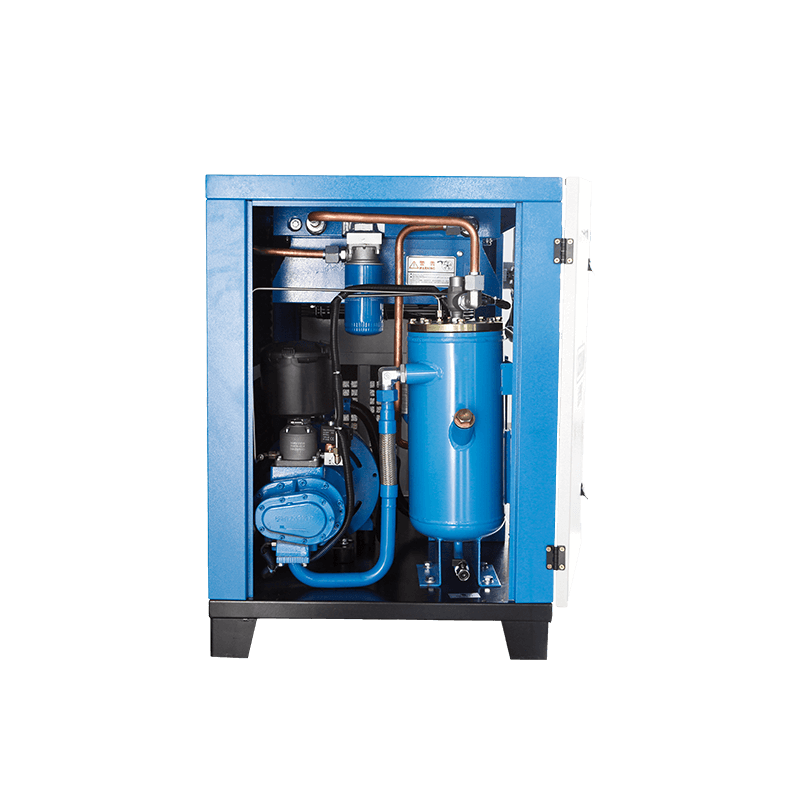

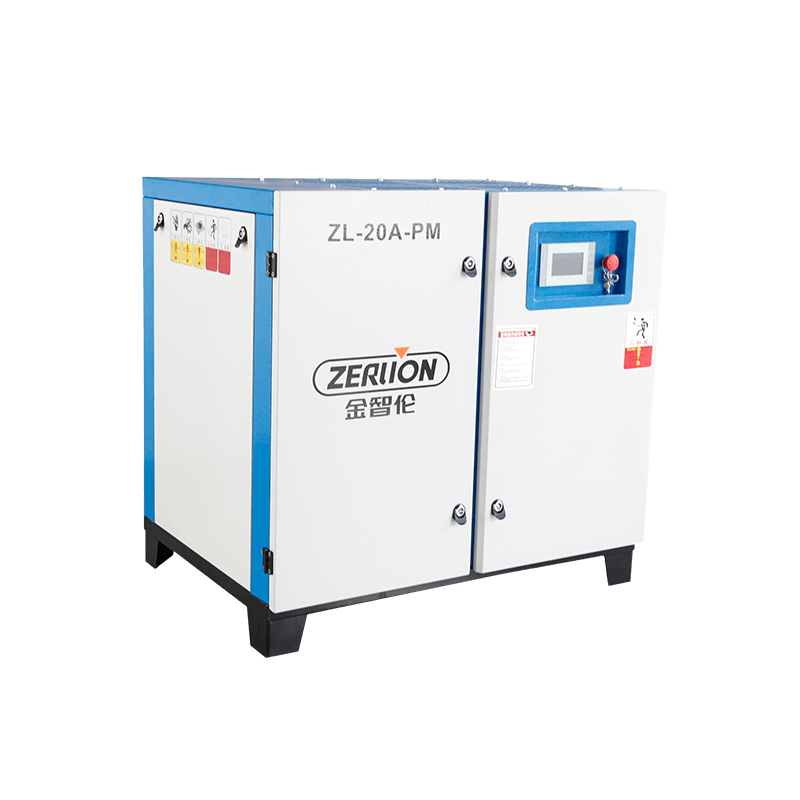

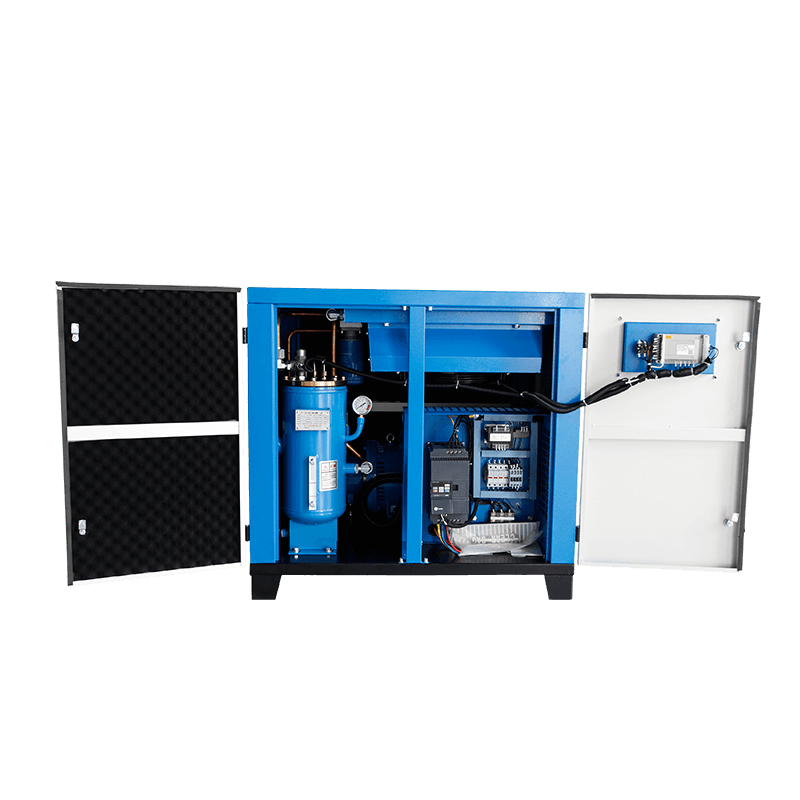

ZL-20A-PM 20HP螺杆式空压机

ZL-20A-PM 20HP螺杆式空压机

PRODUCT FEATURES
UItra-low frequency speed control technology far surpasses standard VSD compressor systems.Capable of lower than 15Hz operation,this system is truly capable of constant variable pressure operation and significant energy saving.

USoft-start feature allows for little or no impact on the power supply system and marginalises mechanical wear and tear up on start-up.
Leakage is always present in any air system.At full pressure a good system can loose 0.2Mpa.Zerlion VSD machines can reduce that loss by up to 25%simply by supplying the air pressure that is required.

Advanced Vector variable frequency control reduces vibration and noise.The unit can be used without the requirement for a special room.
This means saving of all resources required to install a machine in an external location such as pipe and power lines and land.Oil exhaust output is lower than 3ppm thus negating enviromantal impact.

Utilising frequency control for the cooling fan and drive motor allows for up to 30%energy savings.This translates into less frequent servicing of the screw compressor thus further significant savings are achieved over the life of the machine.

邮箱 : Sales@chinazhilun.com

产品详情

参数/型号

ZL-20A-PM

排气量(m³/min) 排气压力(Mpa)

2.5/0.7

2.3/0.8
2.1/1.0
1.9/1.2

冷却方法

风冷

润滑油量 (L)

18

噪音

68±2

驱动方式

直联

电压

220V/380V/415V;50Hz/60Hz

功率(KW/HP)

15/20

启动方式

Y-▲启动;变频启动

外观尺寸(L*W*H)mm

950*750*1250

重量(KG)

300

出口管径

G 3/4"

产地: 中国
业务类型:: 制造商、出口商
品牌名称: 浙江智伦机电
付款和运送条款: L/C, T/T
最小订购数量: 20 PCS
价格: 协商
包装细节: 木箱,蜂窝箱
交货时间: 收到定金之后,25天
付款方式: FOB, CIF

获取报价
